MAXI-PAW Sprinkler / Sprinkler / Lawn Sprinkler - Full or Part Circle - Traditional Outstanding

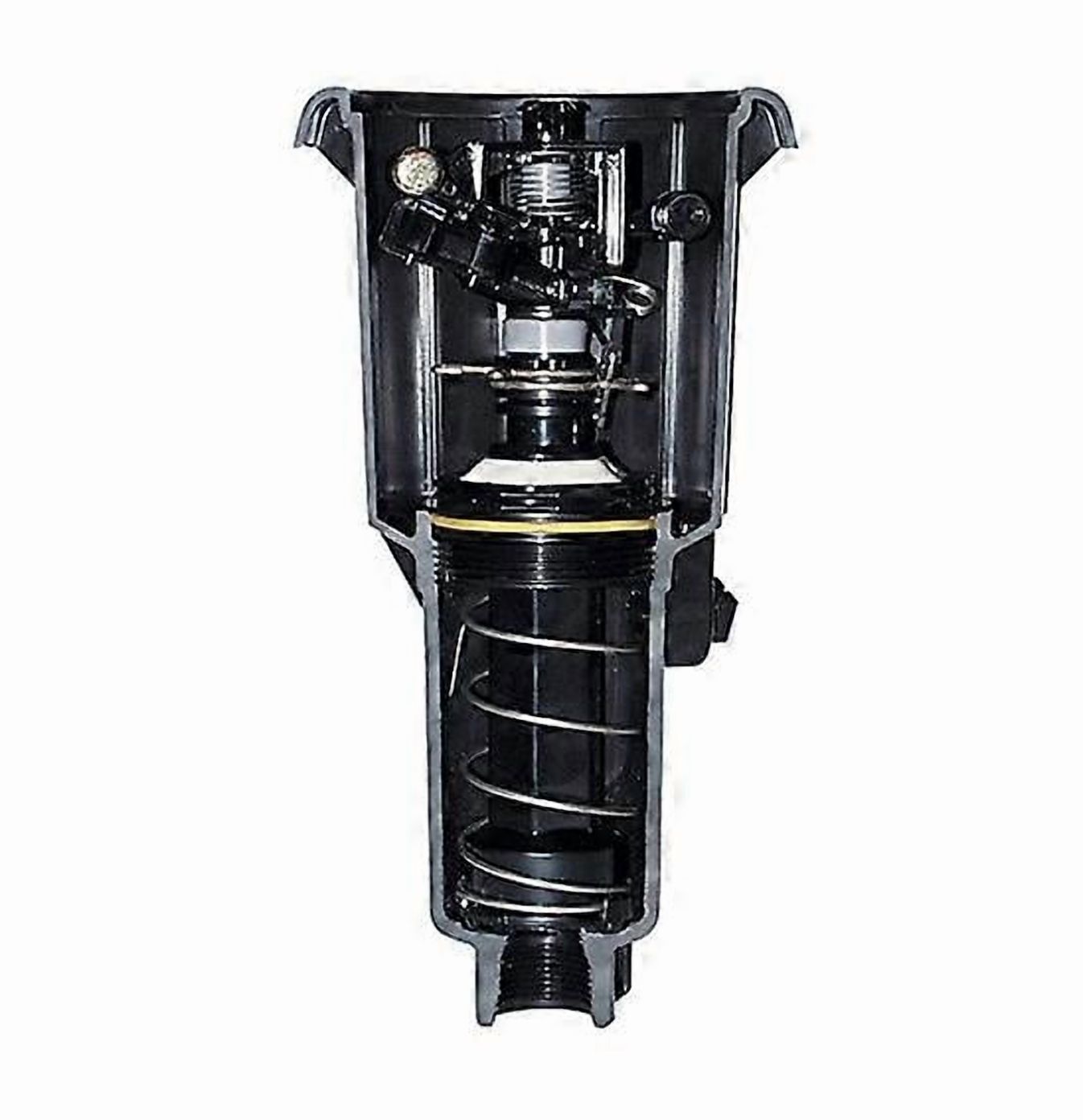

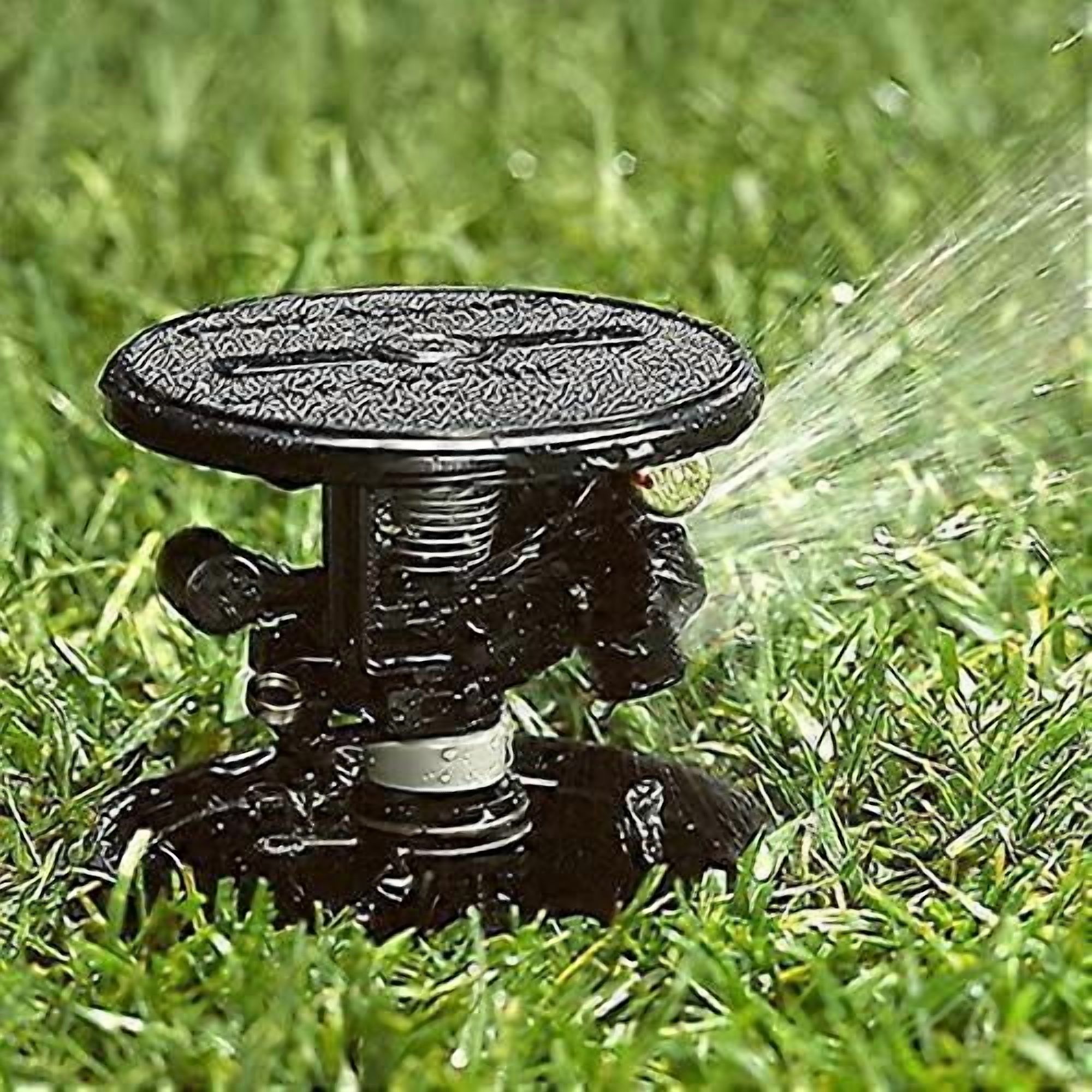

Pressure: 1.7 to 4.1 bars / Range: 5 to 25 m Flow rates: from 0.52 to 1.91 m3/h Double tapped bottom inlet : 12 (15/21) and 34 (20/27) Tapped side entry: 12 (15/21) Travel angle: -23 for supplied nozzle No.08 (blue) Product Description Impact System PJTM anti-splash arms 7.6 cm lift height Nozzles of Color-coded interchangeable bayonet type 1 nozzle supplied (n8 blue) Tool-free nozzle change Double counterweight arm: slow rotation ensuring excellent reach Operates at low pressure and low flow A single full-circle model and 20 circle sector at 340 Anti-splash screw Scraper and seal Reversal lever allowing sector watering Double tapped inlet: 12 (15/21) and 34 (20/27) Maintenance from above of the appliance Optional SAM anti-drainage valve kit Change of characteristics: Sprinklers intended for small and medium-sized residential and public automatic watering installations. These devices are specially designed to operate at low pressure and in contaminated water.

• Pressure: 1.7 to 4.1 bars / Range: 5 to 25 m Flow rates: from 0.52 to 1.91 m3/h Double tapped bottom inlet : 12 (15/21) and 34 (20/27) Tapped Side Entry: 12 (15/21) Travel angle: -23 for supplied nozzle No.08 (blue) Product Description Impact System PJTM anti-splash arms 7. 6 cm lift height Nozzles of Color-coded interchangeable bayonet type 1 nozzle supplied (n8 blue) Tool-free nozzle change Double counterweight arm: slow rotation ensuring excellent reach Operates at low pressure and low flow A single full-circle model and 20 circle sector at 340 Anti-splash screw Scraper and seal Reversal lever allowing sector watering Double tapped inlet: 12 (15/21) and 34 (20/27) Maintenance from above of the appliance Optional SAM anti-drainage valve kit Change of characteristics: Sprinklers intended for small and medium-sized residential and public automatic watering installations. These devices are specially designed to operate at low pressure and in contaminated water.
